產品特點:
體積小,重量輕,功率密度高,適宜產品小型化。優良的EMC/EMI抗干擾性能。
高頻損耗小,溫升低,適宜儲能/濾波,引出線方便,易滿足各國《安規》要求。
作用:儲能,濾波,隔離,阻抗匹配,信號傳輸。
用途:充電樁電源,太陽能電源,風能電源,車載電源,開關電源,UPS/EPS逆變電源,逆變焊機,家用電器,通信設備,醫療設備,音頻/視頻設備,綠色照明設備等。
型號(裸環) | 磁芯型號 | AL值 | 截面/cm2 |
3.43*1.7*1.52 | KT14-26A | 12.5 | 0.012 |
KT14-45A | 16.5 | ||
KT14-52A | 11.5 | ||
4.06*1.98*1.52 | KT16-2 | 2.2 | 0.015 |
KT16-8 | 6 | ||
KT16-18 | 9.5 | ||
KT16-26 | 14.5 | ||
KT16-40 | 12.5 | ||
KT16-45 | 17 | ||
KT16-52 | 13.5 | ||
5.08*2.24*1.78 | KT20-2 | 2.5 | 0.023 |
KT20-8 | 7.8 | ||
KT20-18 | 13 | ||
KT20-26 | 18.5 | ||
KT20-40 | 16 | ||
KT20-45 | 22.5 | ||
KT20-52 | 17.5 | ||
5.66*2.46*3.63 | KT22-26 | 38.5 | 0.052 |
KT22-52 | 38.5 | ||
6.48*3.05*2.44 | KT25-2 | 3.4 | 0.037 |
KT25-8 | 10 | ||
KT25-18 | 17 |
型號(裸環) | 型號 | AL值 | 截面/cm2 |
6.48*3.05*2.44 | KT25-18 | 17 | 0.037 |
KT25-26 | 24.5 | ||
KT25-40 | 20.5 | ||
KT25-52 | 31 | ||
KT25-52 | 23 | ||
6.73*2.67*4.83 | KT26-8 | 24 | 0.09 |
KT26-18 | 41.5 | ||
KT26-26 | 57 | ||
KT26-45 | 77 | ||
KT26-52 | 56 | ||
7.11*3.84*3.25 | KT27-2 | 3.3 | 0.047 |
KT27-8 | 11.5 | ||
KT27-18 | 18.5 | ||
KT27-26 | 27.5 | ||
KT27-52 | 25.5 | ||
7.8*3.84*3.25 | KT30-2 | 4.3 | 0.06 |
KT30-8 | 14 | ||
KT30-18 | 22 | ||
KT30-26 | 33.5 | ||
KT30-40 | 28 | ||
KT30-45 | 40.5 | ||
KT30-52 | 30.5 |
型號(裸環) | 型號 | AL值 | 截面/cm2 |
8.31*4.29*4.01 | KT32-52 | 35 | 0.073 |
9.53*5.21*3.25 | KT37-2 | 4 | 0.064 |
KT37-8 | 12 | ||
KT37-18 | 19 | ||
KT37-19 | 19 | ||
KT37-26 | 28.5 | ||
KT37-40 | 24.5 | ||
KT37-45 | 34 | ||
KT37-52 | 26 | ||
9.53*4.45*4.83 | KT38-2 | 7.4 | 0.114 |
KT38-8 | 20 | ||
KT38-18 | 36 | ||
KT38-19 | 36 | ||
KT38-26 | 49 | ||
KT38-40 | 41.5 | ||
KT38-45 | 65 | ||
KT38-52 | 49 | ||
10.2*5.21*4.14 | KT40-26 | 36 | 0.093 |
KT40-52 | 36 | ||
11.2*5.82*4.04 | KT44-2 | 5.2 | 0.099 |
KT44-8 | 18 | ||
KT44-14 | 6.2 |
1:可依客戶要求制定不同尺寸產品

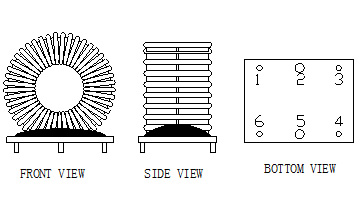

2:H代表臥式安裝, V代表立式安裝
